Square Inductive Proximity Switch , Long Range Inductive Sensor Water Resistant

Zhejiang Zhongde Electric Co., Ltd.

Square Inductive Proximity Switch , Long Range Inductive Sensor Water Resistant

Model Number : GKB-M0524PB

MOQ : 100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000only 8day

Place of Origin : China

Brand Name : Zhongde

Certification : CE

Name : Long Range Inductive Sensor

Shape : Square

Material : ABS

Voltage : DC

Output Method : PNP

Induction Method : Normally Closed

Contact Now

Square Inductive Proximity Switch , Long Range Inductive Sensor Water Resistant

Description

In order to append and respond to the assorted requirements of respectable clients, we are able to offer Inductive Proximity Switch that is extensively used in automation and machinery equipment. The provided switch is manufactured from the supreme quality components and sophisticated techniques. To avoid any flaw, the switch offered by us is rigorously examined by our diligent quality controllers against numerous quality measures.

Features

Easy to install

High durability

High strength

Three-wire PNP normally closed DC

Parameter

Lag distance Less than 10% of the detection distance
Detecting objects Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage DC : DC 12~24 (6~36V) pulse (p-p) below 10%
AC : AC 110~220V (36~250V) 50/60Hz
Current consumption N.P : ≤13mA
D : ≤0.8mA
A : ≤1.7mA
Control output N.P : ≤300mA
D : ≤200mA
A : ≤400mA
Loop protection N.P.D : reverse connection protection, surge absorption, load short circuit protection
A : surge absorption
Ambient temperature -30~+65°C (no icing, no condensation)
Ambient humidity -35~95%RH
Insulation resistance 50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect -30~+65°C: detection distance error ±15% at +23°C
-25~+60°C: detection distance error ±10% at +23°C
Voltage effect 6-36V (90-250V) : ±15% of detection distance error
10-30V (220V) : ±10% of detection distance error
Protection level IP67 (IEC)
Material Housing: ABS
Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

Applications

Search coil magnetometer

Inductive sensors constitute the main element to build a search coil magnetometer, also known as a search coil. These are used in many fields of research: magnetotellurics, electromagnetic waves measurement, space magnetometers to investigate electromagnetic waves in space plasma as well as natural electromagnetic waves observations on Earth.


Product Tags:

inductive proximity sensor switch



inductive type proximity sensor


Quality Square Inductive Proximity Switch , Long Range Inductive Sensor Water Resistant for sale

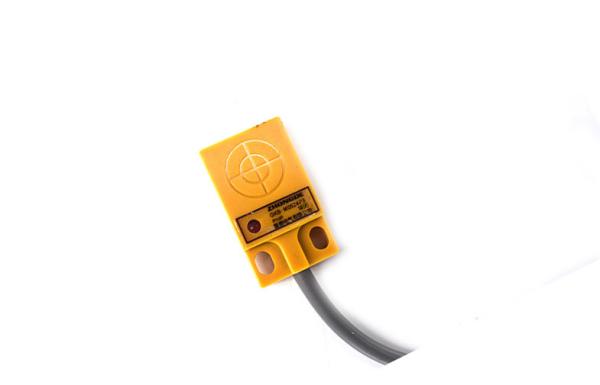

Square Inductive Proximity Switch , Long Range Inductive Sensor Water Resistant Images
